Why White Gold Turns Yellow, and What Actually Fixes It

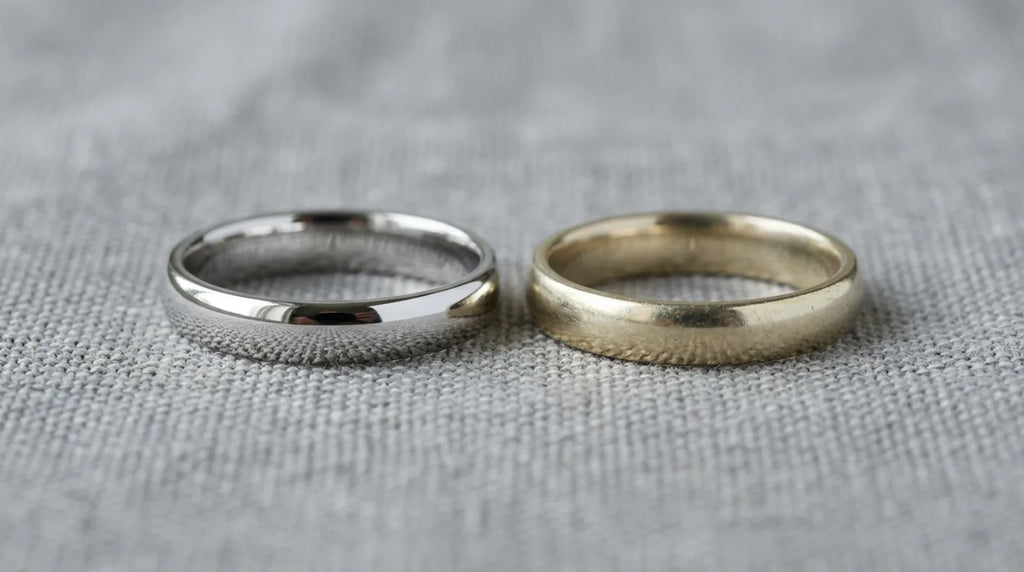

White gold is not white. It is gold, which is yellow, mixed with pale metals to lighten it and then plated with rhodium to finish the job. When a white gold ring starts looking warm or dull around the band, nothing has gone wrong. The plating has worn through and you are seeing the actual alloy underneath.
What rhodium is and why it goes on top
Rhodium is element 45, a very rare, hard, corrosion-resistant transition metal in the platinum group. It is 6.0 on the Mohs scale, melts at 1964 degrees C and has a density of 12.423 g/cm3. Hard, bright, and chemically stubborn.
Its job here is optical. Rhodium coatings reflect roughly 73 percent of visible light, and the metal virtually eliminates surface discolouring even under extreme conditions at normal temperatures. That is the bright, cool white people associate with the metal.
Ganoksin puts the reason bluntly: rhodium is used to give a good white colour to white gold jewellery, which is often not a good white colour on its own. The plating is doing real work.
Half a micron, and why it is not thicker
The layer is thinner than most people imagine. Typical deposit thickness on gold jewellery is about 0.5 microns, ranging up to 2 to 3 microns. Umicore's jewellery rhodium electrolyte is specified to deposit layers 0.1 to 0.3 micrometres thick without cracking.
The obvious question is why nobody just plates it thicker. The answer is internal stress. Stress builds in the deposit as thickness increases, and eventually the layer cracks. A thick rhodium coat would craze and flake, which looks far worse than honest wear. The thinness is a deliberate engineering limit.
Here is the irony that explains the wear pattern. The plating is around HV 950, and Umicore quotes approximately 800 to 900 HV. It is much harder than the gold beneath it. It does not wear away because it is soft. It wears away because there is almost nothing of it.
Where it goes first, and why
Always the same places. The underside of a ring shank, where it grinds against the neighbouring finger and every surface you touch. The high points of a setting. The outer curve of a bangle. Anywhere contact is constant.
The backs of earrings and the inside of a pendant bail often look untouched years later, because nothing rubs them. That uneven wear is the tell. A ring that has gone warm underneath and stayed bright on top has not tarnished, since gold does not tarnish that way. It has been abraded in a pattern that matches how you use your hands.
How fast it happens depends on the person. Hand chemistry, occupation, whether you take rings off for the gym or to garden. We have seen plating survive four years on one customer and eight months on another, wearing the same ring model. We can tell you what we see at the bench, but no honest source publishes an average interval, so be wary of anyone who quotes you one.
The nickel problem, and palladium white gold
White gold gets its pale colour from alloying metals: nickel, silver, platinum or palladium. Nickel is cheap and very effective at bleaching gold, which is why it dominated for decades.
Then regulation intervened. The European Nickel Directive limited nickel release from jewellery in prolonged skin contact to less than 0.5 micrograms per square centimetre per week, and restricted earring posts and body piercing items to under 0.05 percent nickel by weight. A 2004 revision set a release limit of less than 0.2 micrograms per square centimetre per week in artificial sweat for piercing applications.
That pressure pushed the trade toward palladium white gold. It costs more and is greyer, closer to platinum than to that bright plated white. For anyone with a nickel sensitivity it is worth the difference, and our guide to nickel allergy and hypoallergenic jewellery goes further into it.
Your actual options
Replate it. The ring is polished, cleaned and put back through the plating bath. It comes back looking new, and in a year or three you do it again. This is the normal path and most people are happy with it.
Stop replating. Let the alloy show and treat it as a warm white metal. Some people prefer it once they stop expecting bright white, particularly on a ring with a lot of surface area. Nothing is being damaged by leaving it.
Switch metal at the next major repair. If the ring is due for a new shank anyway, platinum or palladium white gold removes the maintenance permanently. Our platinum against white gold comparison lays out the trade-offs, and our piece on rhodium plating covers the process itself.
One caution. Replating means polishing first, and polishing removes metal. Done every year for decades on an engraved or detailed ring, you will soften the detail. On a plain band it is nothing. On a milgrain edge or hand engraving, we would rather replate less often.
Key Takeaways
- White gold is a yellow metal under a rhodium skin. Warmth appearing over time is the alloy showing through, not damage.
- Typical plating is about 0.5 microns, and Umicore specifies 0.1 to 0.3 micrometres for a crack-free layer.
- It cannot simply be plated thicker: internal stress rises with thickness until the deposit cracks.
- Rhodium is harder than the gold underneath at roughly 800 to 950 HV. It wears through because it is thin, not soft.
- Nickel regulation drove the shift to palladium white gold, which is greyer and needs no plating to look acceptable.
- Replating requires polishing, which removes a little metal each time. Consider that on engraved or milgrain pieces.
Pieces from the shop
Frequently Asked Questions
How often does white gold need replating?
There is no honest average, and we are suspicious of anyone who quotes one. Wear depends on your skin chemistry, your job, how often the ring comes off, and where the piece sits on the body. At our Coquitlam bench we have seen plating hold up for years on one customer and wear through in well under a year on another wearing the same model of ring. The mechanism explains the variability: the layer is only about 0.5 microns thick, so the rate is set almost entirely by abrasion rather than by any property of the metal. Rings wear fastest because the underside of the shank rubs constantly. Earrings and pendants often go many years untouched. The practical answer is to replate when it starts bothering you to look at, not on a schedule.
Is the yellowing a sign my ring is fake or low quality?
No, and this is the most common worry we hear about it. It is the opposite of a defect: you are seeing the real gold alloy, which was always there under the plating. White gold is gold mixed with pale metals to lighten the colour, and even then the result is often not a convincing white, which is exactly why rhodium goes on top. Ganoksin says as much directly, describing rhodium as used to give a good white colour to white gold that is often not a good white colour on its own. A gold-plated base metal ring behaves quite differently, wearing through to something grey or coppery rather than to a warm yellow. If your ring is going warm and buttery, that is gold underneath. Bring it in and we can confirm what the alloy is.
Can rhodium plating be made thicker so it lasts longer?
Not usefully, and the reason is mechanical. As the deposit gets thicker, internal stress builds in the layer, and past a point it cracks. A cracked or crazed rhodium surface looks considerably worse than plating that has simply worn thin in the places you touch. Ganoksin gives typical deposits as about 0.5 microns with a practical ceiling around 2 to 3 microns, and Umicore specifies its jewellery electrolyte at 0.1 to 0.3 micrometres for layers that deposit without cracking. So the thinness is a designed limit rather than a shop cutting corners. If you want a white metal that never needs this maintenance, the answer is changing metal to platinum or palladium white gold, not asking for heavier plating.
Should I choose palladium white gold instead?
If you have any nickel sensitivity, we think yes, and the regulatory history supports it. The European Nickel Directive capped nickel release from jewellery in prolonged skin contact at under 0.5 micrograms per square centimetre per week, with much tighter limits for piercing jewellery, and that pressure moved a lot of the trade toward palladium alloys. Palladium white gold is naturally greyer, so it looks acceptable unplated and closer to platinum than to bright plated white. It costs more. If you actively want that very bright cool white, you will still want rhodium on top of it and you are back to periodic replating. Come and look at both in daylight before deciding, because the colour difference is easy to see in person and almost impossible to judge from a photo.
Sources
- Wikipedia, "Rhodium"
- Ganoksin, "Electroplating Jewellery"
- Umicore, "RHODUNA J1 Rhodium Electrolyte"
- Optiforms, "Enhanced Visible Rhodium" optical coatings
- Stuller Bench Jeweler, "The European Nickel Directive"
- The Santa Fe Symposium (2007), "White Gold Piercing Jewelry and The Nickel Directive"
- Wikipedia, "Colored gold"
Sources retrieved September 2026. If something here has gone out of date by the time you are reading it, tell us and we will fix it. We keep these guides current as the trade changes.
Visit Vanhess
Bring the ring in and we will tell you honestly whether it needs replating, whether polishing would cost you detail, and what switching metal would involve. We do this work on site in Coquitlam. See our gold care guide, or call (604) 653-6449.
